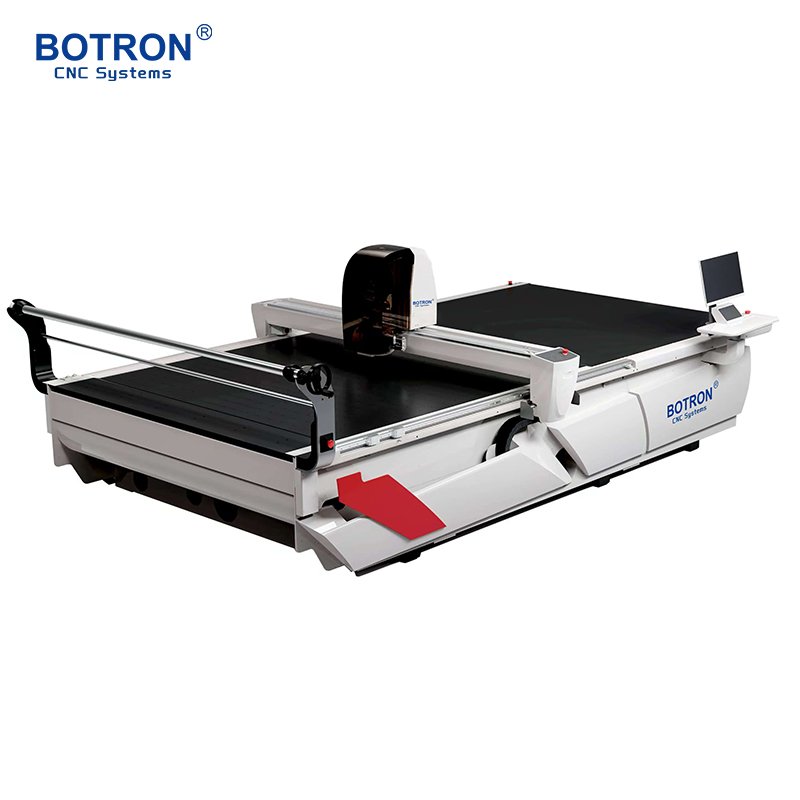

Automatic Multi-Layer Fabric Spreading and Cutting Machine for Cloth Cutting

Products Description
Product Model
S7/11-3317/3320/3323
S7/11-2517/2520/2523
S7/11-2017/2020/2023
Effective cutting range
3.3X1.7M
3.3X2M
3.3X2.3M
2.5X1.7M
2.5X2M
2.5X2.3M
2X1.7M
2X2M
2X2.3M
Length
6.8M (extended to 7.5M)
6.0M
5.3M
Totalweightofequipment
3.6T
3.8T
4T
3.3T
3.5T
3.7T
3.1T
3.3T
3.5T
Width
2.45M
2.75M
3.05M
2.45M
2.75M
3.05M
2.45M
2.75M
3.05M
Height
1978mm/1988mm
Table height
800-850mm
Effective cuttingheight(aftervacuum adsorption)
70mm/110mm
powersupply
Three-phase 380V/50Hz
Totalinstalled capacity
25KW
Averagepower consumption
12KW
Airsource(dryand clean compressedair)
0.5-0.6MPa160L/min
Maximum speed
80m/min
Average cuttingspeed
12m/min
Maximum acceleration
30m/s2
Maximum vibration frequency
4000r/min
Blade Specifications
High-speed tool steel S7:SKH9160x8×3/2.5/2 S11:200×8×3/2.5/2
Operatingsystem
WINDOWS
CAD compatible
CUT、PLT、DXF、GGT、ISO、GBR
Maximum vacuum negative pressure
Negative pressure 18-22kpa

Established in 2017 and headquartered in Shandong, China, Shandong BOTRON CNC Technology Co., Ltd. is a dedicated manufacturer specializing in the design, development, and production of advanced industrial cutting systems. We focus on delivering high-performance, reliable CNC cutting solutions tailored for modern material processing challenges. Our Core Expertise: Vibrating Knife & Multi-Layer Cutting Technology BOTRON excels in the manufacturing of two key product lines: High-Precision Vibrating Knife Cutting Machines: Engineered for exceptional accuracy and clean cuts on a vast array of materials, including technical textiles, composites, leather, foam, rubber, carpets, and especially synthetic leather (PU/PVC). Our vibrating knife technology eliminates thermal damage, ensures intricate contour cutting, and maximizes material utilization. Advanced Multi-Layer Fabric Cutting Machines: Designed for significant productivity gains, our robust systems efficiently cut multiple layers of fabric (woven, non-woven, technical textiles) simultaneously with consistent precision, reducing labor costs and boosting throughput for high-volume applications. Commitment to Quality & Innovation As a factory-direct manufacturer, BOTRON maintains stringent quality control throughout the production process. We leverage our engineering expertise and close collaboration with customers to continuously refine our machines, ensuring they meet evolving industry demands for speed, precision, automation, and user-friendliness. Our commitment extends to providing comprehensive technical support and service.
